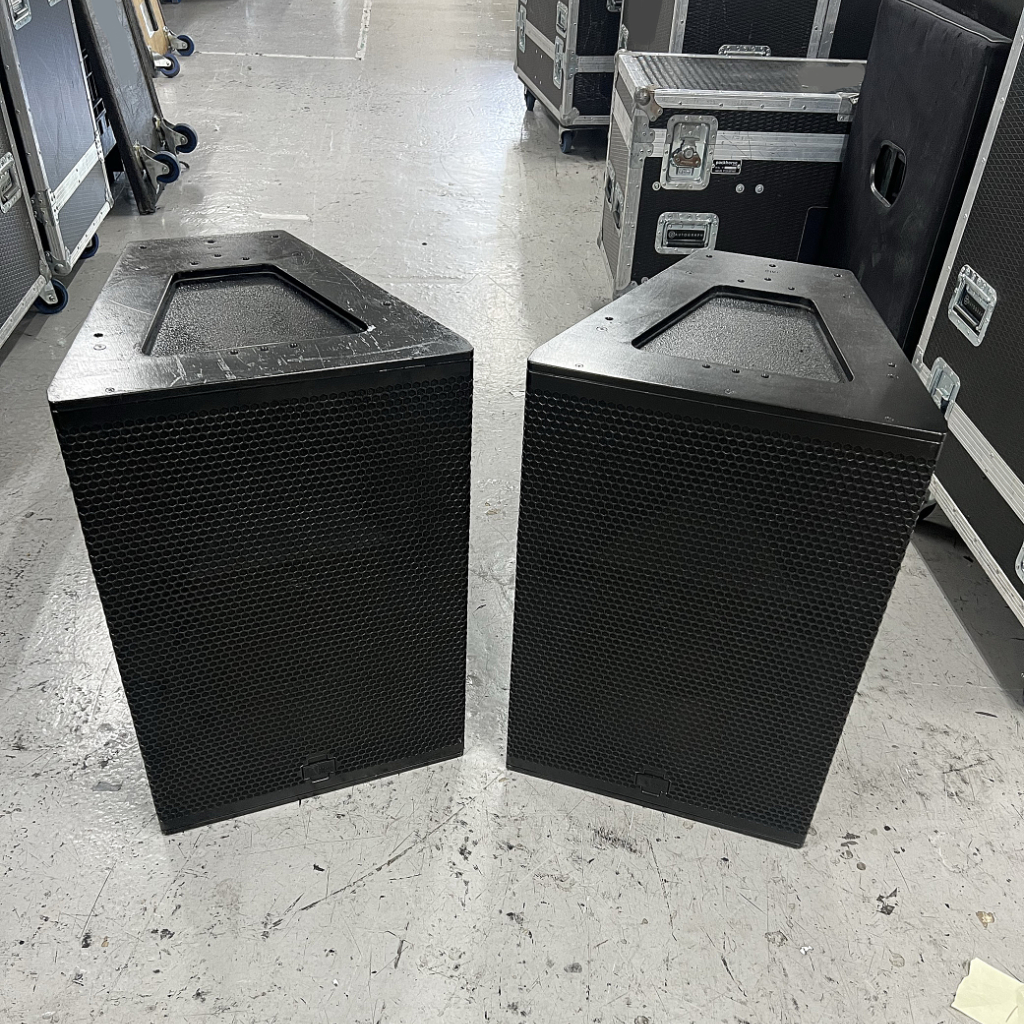

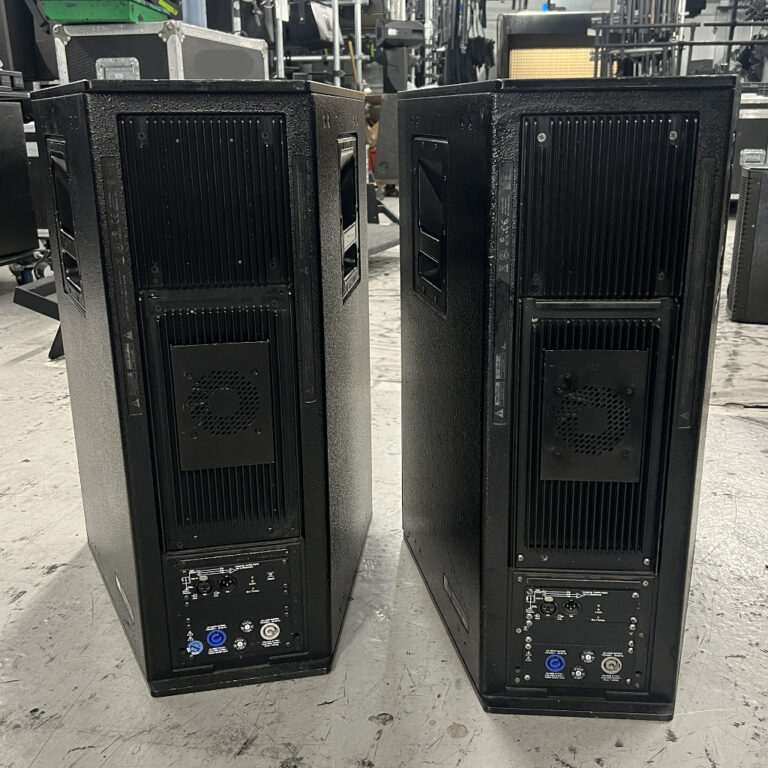

Meyer Sound UPQ-1P: A High-Powered Solution for Premium Sound Reinforcement
When serious audio professionals need power, precision, and plug-and-play simplicity, they turn to the Meyer Sound UPQ-1P. This self-powered, high-performance loudspeaker is built for demanding venues, delivering crystal-clear sound across a wide horizontal coverage. Whether it’s for concert venues, theaters, or churches, the UPQ-1P consistently delivers incredible fidelity, control, and reliability.
In this detailed breakdown, we explore everything that makes the UPQ-1P a go-to tool for sound system designers and engineers alike.
What is the Meyer Sound UPQ-1P?
The UPQ-1P is part of Meyer’s acclaimed UPQ series—point-source loudspeakers designed for flexibility without compromise. It combines a wide 80° horizontal coverage pattern, an internal amplifier, and sophisticated onboard processing for unmatched clarity and ease of use.
Key Specifications:
-
Frequency Response: 55 Hz – 18 kHz
-
Peak SPL: 136 dB
-
Coverage Pattern: 80° horizontal × 50° vertical
-
Transducers: 15″ LF driver, 4″ diaphragm HF compression driver
-
Amplification: Class AB/H self-powered
-
Dimensions: 27.83″ H × 19.04″ W × 18.50″ D
-
Weight: 113 lbs (51.3 kg)
This loudspeaker is optimized for applications requiring high output and consistent tonal balance, even in acoustically complex environments.
Top Benefits of the Meyer Sound UPQ-1P Loudspeaker
True Plug-and-Play Design
The self-powered design with onboard processing eliminates external amplifiers and crossover hassles, reducing install time and error risk.
Massive Output with Precision
At 136 dB peak SPL, the UPQ-1P offers concert-level power, yet remains tonally transparent even at high volumes.
Consistent Horizontal Coverage
With an 80° horizontal dispersion, this speaker is ideal for wide seating areas, side fills, and even under-balcony coverage.
Rotatable Horn
The constant-Q horn can be rotated to accommodate horizontal or vertical mounting, enhancing placement flexibility.
Advanced Protection and Limiting
Meyer’s TruPower™ Limiting and phase-corrected crossover ensure both safety and sonic integrity at any SPL.
Common Applications for the UPQ-1P
| Environment | Ideal Use Case |
|---|---|
| Performing Arts Theaters | Main PA or flown array system |
| Churches & Sanctuaries | Center cluster or side fills |
| Clubs & Venues | Full-range top with Meyer subs |
| Outdoor Events | Standalone or delay tower element |
| Stadiums | Point-source reinforcement in niche zones |
UPQ-1P vs. Other Meyer Loudspeakers
| Feature | UPQ-1P | UPA-1P | UPJ-1P |
|---|---|---|---|
| Max SPL | 136 dB | 128 dB | 126 dB |
| Coverage | 80° × 50° | 100° × 40° | 80° × 50° |
| Driver Size | 15″ + 4″ | 10″ + 3″ | 10″ + 2″ |
| Best Use | Large venues, high-output zones | Versatile general-purpose | Compact installs, nearfield |
The UPQ-1P provides a huge performance jump for projects that need more headroom, more low-end, and greater throw.
The Technology Inside the UPQ-1P
Meyer Sound’s tech stack inside this cabinet is why it sounds so clean and performs so reliably:
-
Class AB/H Bi-Amplification: Two separate amps optimize the LF and HF drivers independently
-
Internal Signal Processing: Manages crossover, EQ, and limiting
-
Phase Correction: Ensures smooth summation with subs or other tops
-
Intelligent Cooling: Ensures consistent performance under thermal load
These features allow the UPQ-1P to outperform traditional passive or mismatched speaker/amp combinations.
Integrators Love the UPQ-1P Because…
-
It reduces the rack space and power distribution needs
-
It’s predictable in every venue—saving tuning time
-
Rigging is made easy with standard M10 threaded points
-
It matches seamlessly with Meyer subwoofers like the 600-HP or 750-LFC
-
No DSP guesswork—it’s already tuned and ready
Where to Buy the Meyer Sound UPQ-1P
Ready to add the UPQ-1P to your system? Visit Sasphonik’s online store for:
-
Verified stock with warranty
-
Custom packages with subs, processors, and rigging
-
Professional consultation for installs and system design
About Meyer Sound Laboratories
Founded in 1979, Meyer Sound has been a pioneer in powered loudspeakers, line arrays, and sound design software. Their products have become standard equipment in Broadway theaters, major festivals, and corporate auditoriums.
The UPQ-1P continues this legacy with best-in-class engineering, designed to exceed expectations and survive the road.
FAQs About the Meyer Sound UPQ-1P
Is the UPQ-1P passive or powered?
It’s fully self-powered with internal class AB/H amplification.
Can the horn be rotated for horizontal installs?
Yes. The constant-Q horn is rotatable, ideal for flexible mounting.
What tops pair best with UPQ-1P?
It works well standalone, but for extended range, pair it with Meyer 600-HP or 750-LFC subs.
Does it require external processing?
No. The built-in DSP handles all crossover and protection duties, but it integrates well with Galileo processors for system-wide control.
How much space does it need?
Despite its power, it’s compact enough to fly or stack even in space-constrained environments.
Is it overkill for small venues?
Only if you’re volume-sensitive—it scales well, but it truly shines in medium to large spaces.
Final Thoughts: Is the UPQ-1P Right for You?
The Meyer Sound UPQ-1P is more than just a loudspeaker—it’s a turnkey solution for high-output, high-fidelity reinforcement. Whether you’re designing a multi-zone theater system, outfitting a mega-church, or touring internationally, the UPQ-1P gives you professional sound with unmatched reliability.
Find out how it can elevate your next audio project at Sasphonik’s pro audio shop.
